What the editor does

The Recordings Editor is the in-browser view bound to an existing Recording on the platform orchestrated by C21 Live Control. It is the path from a captured broadcast to a clip that can be downloaded, handed to MediaCopilot or pushed to an external storage target. The editor never modifies the source Recording; every export is a new derived artefact.

The editor can be opened on a Recording in any state, including while the Recording is still being written (the API exposes ended_at: null in that case).

The Editor tab and the underlying execute endpoint require the C21LiveEditor license on the Live Control instance. Without it the tab is hidden from the Recordings section and direct calls to the execute endpoint are rejected.

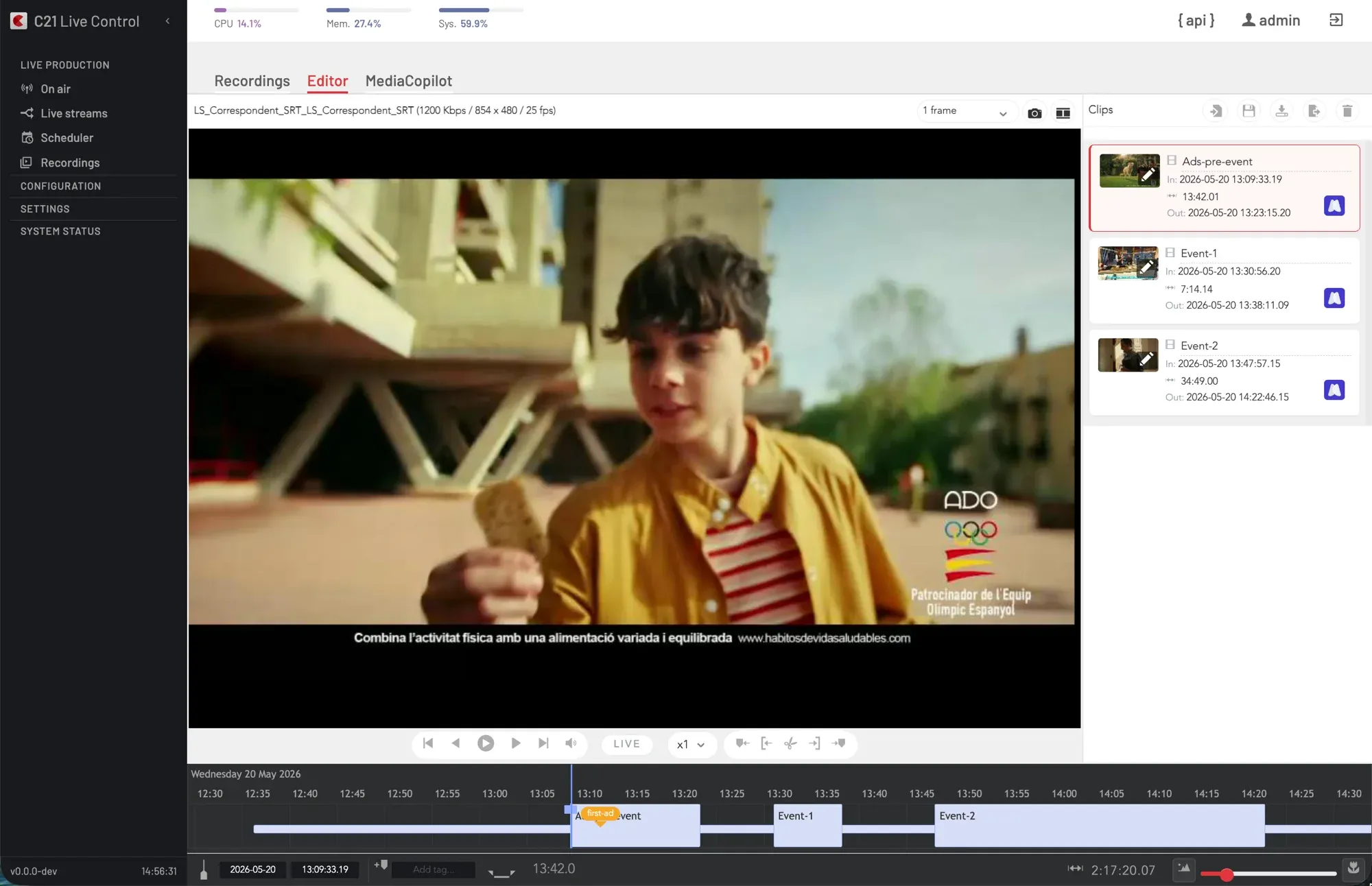

UI Interface

The Editor view exposes:

Clips survive page reloads — the Editor persists them under a per-Recording key in the browser session storage and restores them on next mount.

How a cut is defined

A cut is the body of a single executeEditor request. The required fields are:

Output formats

The Send-to dialog exposes the following output formats:

Delivery targets

The Send-to dialog exposes one target at a time. The chosen command value activates the matching sub-object on the request body.

Each FTP, SFTP and S3 sub-object accepts the connection fields inline or — preferred — a single id reference to a saved Target Folder (cross-link below).

FTP and SFTP sub-objects

{
  "ftp": {
    "id": <target folder id>,
    "host": "<host>",
    "username": "<user>",
    "password": "<password>",
    "path": "<remote dir>",
    "filename": "<override filename>"
  }
}

sftp accepts the same shape plus an optional account identifier. When id references a saved Target Folder, the host, credentials and path are taken from the saved entry and the inline values may be omitted.

S3 sub-object

{
  "s3": {
    "id": <target folder id>,
    "aki": "<AWS access key id>",
    "sak": "<AWS secret access key>",
    "bucket": "<bucket name>"
  }
}

When id references a saved Target Folder, the credentials and bucket are taken from the saved entry. See Target Folders for the catalogue and the credential model.

Audio selection

The optional audio block selects which audio tracks the cut carries forward — useful for multi-language Recordings:

{
  "audio": {
    "pids": [<pid>, …],
    "languages": ["<lang>", …],
    "codecs": ["<codec>", …]
  }
}

Each member is independent; the editor matches tracks by any combination of pid, language or codec.

DRM on export

When the deployment serves clips protected at rest, the optional drm block attaches a registered DRM provider to the cut. Only valid in combination with packaging-aware outputs:

{
  "drm": {
    "provider": <provider id>,
    "content_id": "<hex content id>"
  }
}

content_id must be a hexadecimal value. See DRM workflow for the provider registration and the multi-system reach (Widevine, PlayReady, FairPlay).

XML metadata sidecar

When xml_enabled = true, the editor generates an XML sidecar from the configured template and delivers it alongside the video file. The metadata fields live on the chosen FTP / SFTP / S3 sub-object (or are submitted from the Send-to dialog's metadata form):

The XML template itself is customised per deployment by the System Administrator at install time — operators only fill the fields above.

MediaCopilot export

command: "exportMediaCopilot" activates the MediaCopilot-specific fields. The two prerequisites carried over from the MediaCopilot integration page apply: a MediaCopilot account contracted through Cires21 plus the C21LiveEditor license.

When sync = false, poll the job via GET /c21apiv2/system/mediacopilot/jobs/{jobId} until it completes. The MediaCopilot target is offered on the Send-to dialog only when the integration has been configured under Integrations → MediaCopilot.

API surface

The full request body is documented above. The handler honours Idempotency-Key; replaying the same key returns the original response without re-cutting.

Minimal example — download an MP4 clip:

curl -X POST "https://<your-host>/c21apiv2/editor/<broadcastName>/<broadcastDetailName>/execute" \
  -H "Authorization: Bearer <YOUR_API_TOKEN>" \
  -H "Content-Type: application/json" \
  -d '{
    "quality": 4000,
    "allbitrates": false,
    "kfstart": true,
    "concat": false,
    "encoding": "mp4",
    "command": "download",
    "filename": "highlight",
    "intervals": [{ "start": 1747585200, "end": 1747588800, "name": "Goal 1" }]
  }'

Cross-links

• Recordings — catalogue of captures and retention policy.
• Live stream options — open the editor on the active Recording of a Live stream.
• Target Folders — register Target Folders for FTP / SFTP / S3 delivery.
• MediaCopilot integration — account model and prerequisites for the MediaCopilot export target.
• DRM workflow — provider registration for the optional drm block on export.
• Cut a clip in the Editor and send it to MediaCopilot — step-by-step how-to.
